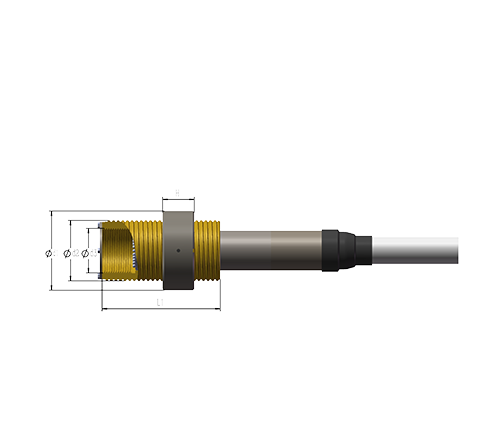

Φ7 系列
| 規 格 |
L1 (mm) |
L2 (mm) |
H (mm) |
d1 (mm) |
d2 (mm) |
d3 (mm) |
d4 (mm) |
| 7X55 | 350 | 295 | 90 | 220 | Tr175X8 | 119 | Tr130X8 |
| 7X61 | 360 | 295 | 90 | 230 | Tr180X8 | 119 | Tr135X8 |
| 7X73 | 370 | 295 | 90 | 250 | Tr190X8 | 125 | Tr140X8 |
| 7X85 | 410 | 325 | 110 | 270 | Tr205X10 | 131 | Tr150X8 |
| 7X91 | 410 | 325 | 110 | 275 | Tr210X10 | 138 | Tr155X8 |
| 7X109 | 430 | 335 | 110 | 295 | Tr225X10 | 138 | Tr165X10 |
| 7X121 | 450 | 345 | 135 | 310 | Tr240X12 | 144 | Tr175X10 |
| 7X127 | 450 | 340 | 135 | 320 | Tr245X12 | 150 | Tr180X10 |
| 7X139 | 460 | 335 | 135 | 325 | Tr250X12 | 157 | Tr180X12 |
| 7X151 | 480 | 355 | 135 | 340 | Tr265X12 | 157 | Tr190X12 |
| 7X163 | 510 | 375 | 135 | 350 | Tr270X12 | 166 | Tr195X12 |
| 7X187 | 520 | 375 | 155 | 375 | Tr285X12 | 166 | Tr205X12 |
| 7X199 | 540 | 395 | 155 | 385 | Tr300X14 | 178 | Tr215X14 |
| 7X211 | 555 | 390 | 180 | 400 | Tr310X14 | 178 | Tr220X14 |
| 7X223 | 575 | 410 | 180 | 405 | Tr315X14 | 192 | Tr225X14 |
| 7X241 | 585 | 415 | 180 | 425 | Tr330X16 | 192 | Tr235X16 |
| 7X253 | 595 | 425 | 180 | 435 | Tr335X16 | 192 | Tr240X16 |
| 7X265 | 610 | 425 | 200 | 445 | Tr345X16 | 192 | Tr245X16 |
| 7X283 | 635 | 445 | 200 | 450 | Tr345X18 | 201 | Tr245X18 |
| 7X301 | 645 | 450 | 200 | 470 | Tr360X18 | 217 | Tr255X18 |
| 7X313 | 655 | 460 | 200 | 470 | Tr365X18 | 217 | Tr260X18 |
| 7X337 | 695 | 480 | 220 | 495 | Tr385X20 | 243 | Tr270X18 |
| 7X349 | 710 | 495 | 220 | 500 | Tr385X20 | 271 | Tr270X20 |
| 7X367 | 715 | 500 | 220 | 510 | Tr390X20 | 271 | Tr275X20 |
| 7X379 | 725 | 510 | 220 | 520 | Tr400X20 | 287 | Tr280X20 |
| 7X409 | 755 | 510 | 245 | 540 | Tr415X22 | 290 | Tr290X22 |
| 7X421 | 775 | 530 | 245 | 545 | Tr420X22 | 295 | Tr295X22 |
Φ5 系列
| 規 格 |
L1 (mm) |
L2 (mm) |
H (mm) |
d1 (mm) |
d2 (mm) |
d3 (mm) |
d4 (mm) |
| 5X55 | 300 | 300 | 70 | 170 | Tr135X6 | 93 | Tr105X5 |
| 5X61 | 300 | 300 | 70 | 180 | Tr140X6 | 93 | Tr110X5 |
| 5X73 | 300 | 300 | 90 | 190 | Tr150X8 | 100 | Tr115X6 |
| 5X85 | 335 | 335 | 90 | 210 | Tr165X8 | 100 | Tr125X6 |
| 5X91 | 335 | 335 | 90 | 210 | Tr165X8 | 112 | Tr125X6 |
| 5X109 | 340 | 290 | 90 | 225 | Tr175X8 | 112 | Tr135X6 |
| 5X121 | 355 | 300 | 90 | 235 | Tr185X8 | 119 | Tr140X6 |
| 5X127 | 365 | 300 | 90 | 235 | Tr185X8 | 125 | Tr140X8 |
| 5X139 | 365 | 300 | 90 | 250 | Tr195X8 | 125 | Tr145X8 |
| 5X151 | 380 | 310 | 90 | 255 | Tr200X8 | 131 |
Tr150X8 |
| 規 格 |
L1 (mm) |
L2 (mm) |
H (mm) |
d1 (mm) |
d2 (mm) |
d4 (mm) |
| 7X55 | 385 | 340 | 80 | 230 | Tr170X6 | Tr140X6 |
| 7X61 | 385 | 340 | 80 | 230 | Tr170X6 | Tr140X6 |
| 7X73 | 400 | 360 | 100 | 250 | Tr190X8 | Tr155X6 |
| 7X85 | 400 | 360 | 100 | 250 | Tr190X8 | Tr155X6 |
| 7X91 | 440 | 370 | 100 | 260 | Tr200X8 | Tr165X8 |
| 7X109 | 460 | 390 | 120 | 290 | Tr220X10 | Tr180X8 |
| 7X121 | 510 | 415 | 120 | 300 | Tr230X10 | Tr185X10 |
| 7X127 | 520 | 425 | 120 | 310 | Tr240X10 | Tr195X10 |
| 7X139 | 520 | 425 | 120 | 310 | Tr240X10 | Tr195X10 |
| 7X151 | 530 | 435 | 120 | 330 | Tr250X10 | Tr195X10 |
| 7X163 | 550 | 455 | 120 | 340 | Tr260X10 | Tr205X10 |
| 7X187 | 580 | 485 | 150 | 350 | Tr270X12 | Tr215X10 |
| 7X199 | 620 | 515 | 150 | 370 | Tr280X12 | Tr220X10 |
| 7X211 | 630 | 525 | 150 | 380 | Tr290X12 | Tr230X10 |
| 7X223 | 640 | 535 | 150 | 390 | Tr300X12 | Tr235X10 |
| 7X241 | 665 | 545 | 170 | 400 | Tr310X14 | Tr240X12 |
| 7X253 | 700 | 570 | 170 | 420 | Tr320X14 | Tr250X12 |
| 7X265 | 700 | 570 | 170 | 420 | Tr320X14 | Tr260X12 |
| 7X283 | 730 | 590 | 170 | 430 | Tr330X14 | Tr265X14 |
| 7X301 | 750 | 610 | 190 | 440 | Tr340X16 | Tr270X14 |
| 7X313 | 795 | 630 | 190 | 470 | Tr360X16 | Tr285X16 |
| 7X337 | 795 | 630 | 190 | 470 | Tr360X16 | Tr285X16 |
| 7X349 | 815 | 650 | 190 | 480 | Tr360X16 | Tr295X15 |
| 7X367 | 815 | 650 | 190 | 480 | Tr370X18 | Tr295X16 |
| 7X397 | 865 | 690 | 220 | 510 | Tr390X18 | Tr310X16 |
| 7X421 | 890 | 720 | 220 | 520 | Tr400X18 |
Tr320X16 |
| 規 格 |
L1 (mm) |
L12 (mm) |
H (mm) |
d1 (mm) |
d2 (mm) |
d4 (mm) |
| 5X55 | 280 | 240 | 75 | 190 | Tr140X6 | Tr110X6 |
| 5X61 | 340 | 240 | 75 | 190 | Tr140X6 | Tr110X8 |
| 5X73 | 350 | 280 | 100 | 210 | Tr160X8 | Tr120X8 |
| 5X85 | 350 | 280 | 100 | 210 | Tr160X8 | Tr120X8 |
| 5X91 | 365 | 295 | 100 | 230 | Tr170X8 | Tr130X8 |
| 5X109 | 390 | 295 | 120 | 240 | Tr180X10 | Tr135X10 |
| 5X121 | 400 | 305 | 120 | 250 | Tr190X10 | Tr140X10 |
| 5X127 | 410 | 315 | 120 | 260 | Tr200X10 | Tr150X10 |
| 5X139 | 430 | 325 | 120 | 270 | Tr200X10 | Tr150X10 |
| 5X151 | 440 | 325 | 120 | 270 | Tr200X10 | Tr150X12 |
| 5X163 | 460 | 345 | 140 | 280 | Tr210X12 | Tr155X12 |
| 5X187 | 470 | 355 | 140 | 290 | Tr220X12 | Tr160X12 |
| 5X199 | 500 | 360 | 140 | 300 | Tr230X12 | Tr165X14 |
| 5X211 | 500 | 360 | 140 | 300 | Tr230X12 | Tr170X14 |
| 5X223 | 510 | 370 | 170 | 310 | Tr240X12 | Tr175X14 |
| 5X241 | 530 | 380 | 170 | 330 | Tr250X14 | Tr180X14 |
| 5X253 | 560 | 390 | 170 | 340 | Tr260X14 | Tr190X16 |
| 5X265 | 570 | 400 | 170 | 340 | Tr260X14 | Tr190X16 |
| 5X283 | 580 | 410 | 170 | 350 | Tr270X14 | Tr200X16 |
| 5X301 | 590 | 420 | 190 | 360 | Tr280X16 |
Tr205X16 |
